主要用途：

Main use:

該焊接專機主要應用于汽車后橋異形后蓋角環縫的自動化焊接。

This welding machine is mainly used for automated welding of corner and circumferential seams on irregular rear covers of automotive rear axles.

主要優點：

Main advantages:

穩定焊接質量，保證其一致性；

Stable welding quality to ensure consistency;

改善工人勞動條件，降低對工人操作技術的要求；

Improve the working conditions of workers and reduce the requirements for their operational skills;

提高產量，增加企業效益；

Increase production and increase enterprise efficiency;

性價比較高；

High cost performance ratio;

設備主要配置：

Main equipment configuration:

采用高質量5軸數控系統集成控制，減少設備故障率；

Adopting high-quality 5-axis CNC system integrated control to reduce equipment failure rate;

采用sansung系列的s3c2410a 單片機（arm9）主頻高達200mhz；

Adopting the Sansung series s3c2410a microcontroller (arm9) with a main frequency of up to 200MHz;

采用進口伺服電機無極調速，保證設備運行軌跡精度，增加設備的使用壽命；

Adopting imported servo motors for stepless speed regulation to ensure the accuracy of equipment operation trajectory and increase the service life of the equipment;

采用10.4寸彩色觸摸屏為界面輸入，更便于操作和參數調整；

Using a 10.4-inch color touch screen as the interface input for easier operation and parameter adjustment;

任意5軸直線插補、圓弧插補；采用示教編程方式；

Arbitrary 5-axis linear interpolation and circular interpolation; Using demonstration programming method;

結構介紹：

Structure introduction:

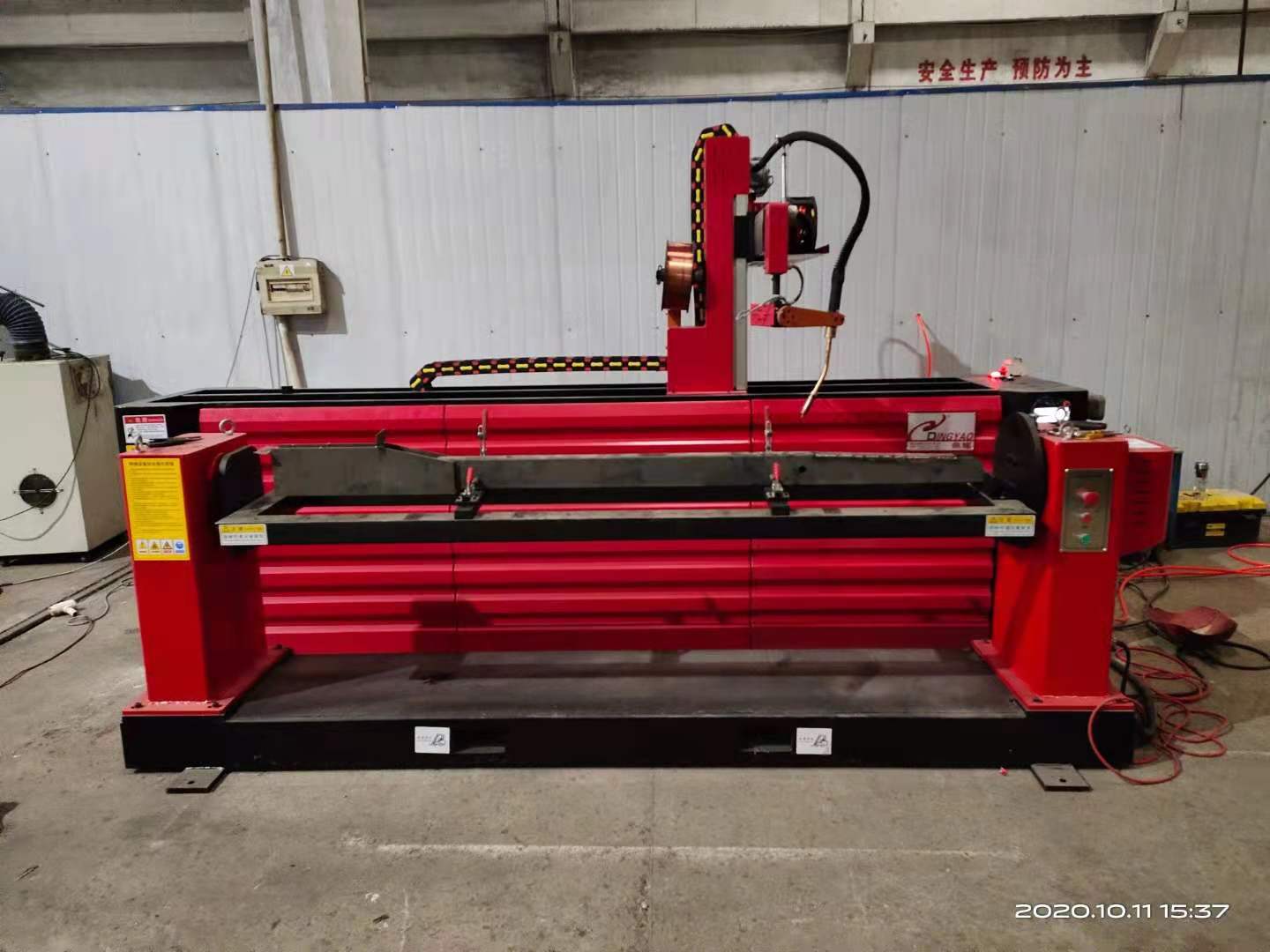

該焊接專機由立式焊接機床、兩軸變位機、焊接電源、送絲機構、焊槍（可選空冷或水冷）及電氣控制等部分組成。

This welding machine consists of a vertical welding machine, a two axis displacement machine, a welding power supply, a wire feeding mechanism, a welding gun (optional air or water cooling), and electrical control.

該焊接專機為單機頭結構類型，焊接方式采用工件旋轉、變位與焊槍相互協調運行的方式；焊接工件直徑和長度根據用戶需要設計。

The welding machine is a single head structure type, and the welding method adopts the coordinated operation of workpiece rotation, displacement, and welding gun; The diameter and length of the welded workpiece are designed according to user needs.

該焊接專機具有可長期進行焊接作業、保證焊接作業的高生產率、高質量和高穩定性等特點。

This welding machine has the characteristics of being able to perform welding operations for a long time, ensuring high productivity, high quality, and high stability of welding operations.
